645 Texas

“Part Grit, Part Gloss”: Sustainable amenities in San Francisco’s once industrial streetscape

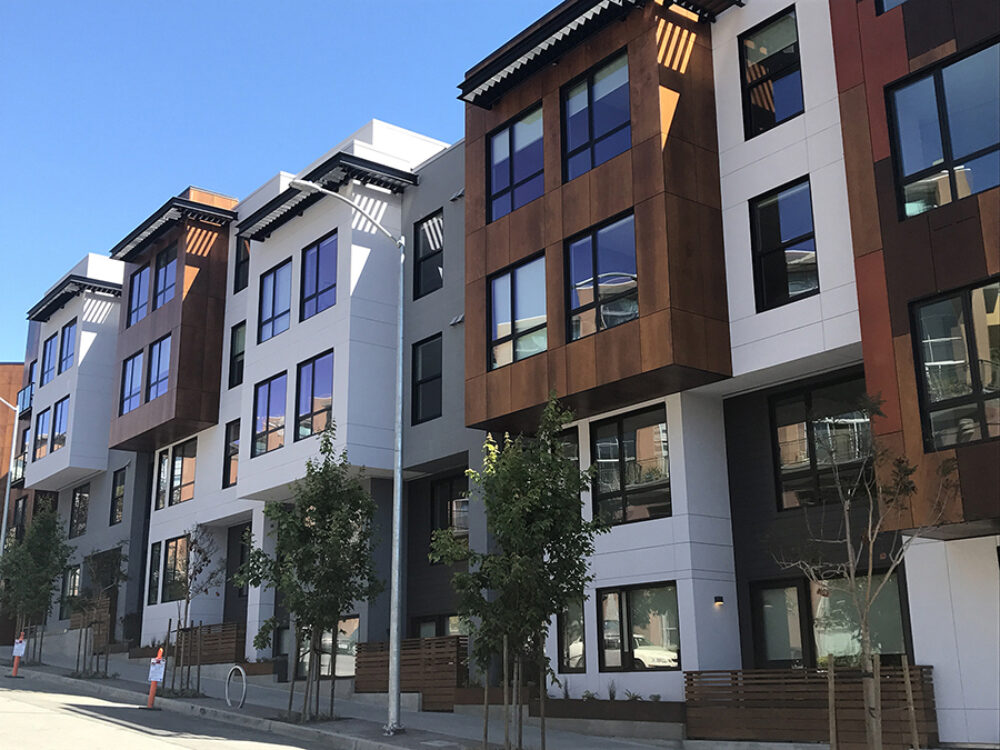

Blending a modern mixed-use building in San Francisco’s quirky Dogpatch neighborhood means fitting into a reimagined industrial area. Readapted warehouses are rife with independent businesses and local culture. The five-story podium project has 94 residential units in total ̶ 80 of them are market rate and 11 are below market rate. There is 550-sf of retail space at the ground level and a below-grade parking level. Eight different segments of the building vary in height and shape around a central community courtyard.

As the Structural Engineering of Record for the project, DCI worked closely with the geotechnical engineer to develop an alternative foundation system that eliminated the need for grade-beams. In this case, designing without grade-beams reduced the construction cost of the project by hundreds of thousands of dollars while providing a resilient and safe design.

DCI Engineers designed the gravity system, wood shear wall design, column layout, and floor plans. The engineering team provided construction service support for the general contractor and generated a calculation and detailing documents for the developer.

Location Pin Icon
Location:
San Francisco, California
Cube Measurments Icon
Square Feet:
133,300
Building Icon
Stories:
4-5
Geometric Shapes Icon
Service:
Structural
Pie Chart Icon
Industries:
Commercial, Multi-Family Residential
Material Shapes Icon
Primary Material:
Steel, Wood

Project Highlights

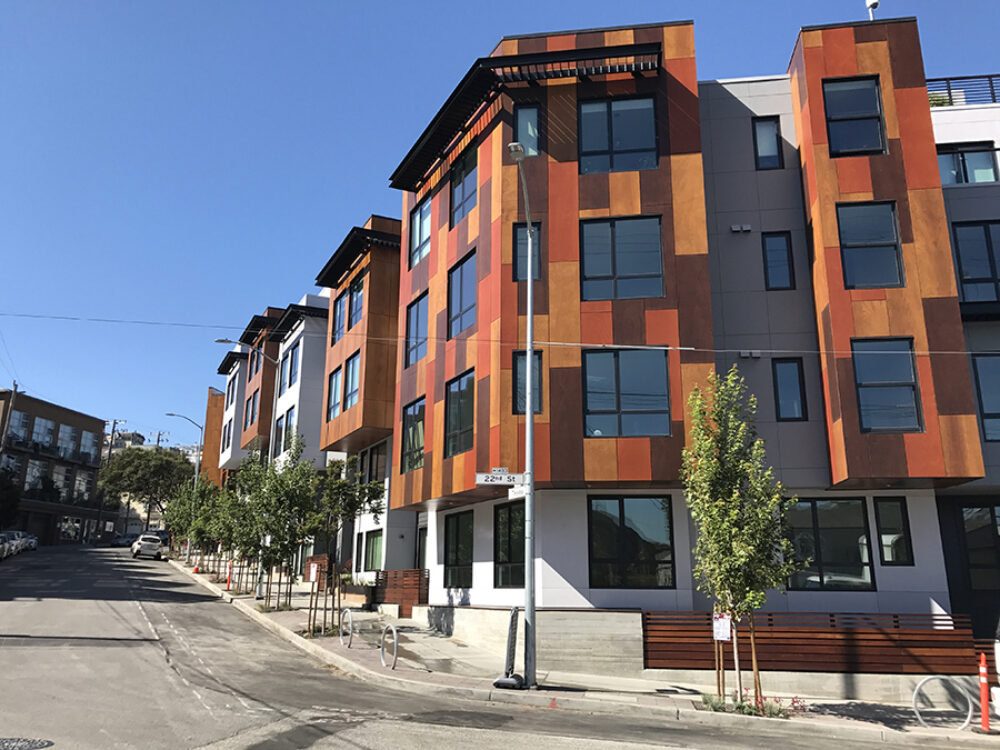

  • The building has a stepped concrete podium to accommodate the site’s sloped conditions. In this case, the design solution was a cost-effective alternative compared to a grade-beam foundation system.
  • The property includes sustainable amenities, such as electric vehicle charging stations and a landscaped courtyard with a butterfly habitat.
  • Walking distance to Caltrain’s 22nd Street station.
  • Conforms to San Francisco’s General Plan and Eastern Neighborhoods Area Plan.
  • The building is “Green Point Rated” by Build It Green.
